2011 Trek Scratch Air 9 : First Look

Jul 20, 2010
by Mike Levy
On my last day in Chatel, France, I had a chance to take a closer look at Trek's 2011 Scratch Air 9. The 170 mm travel air sprung bike uses the same frame as the coil sprung Scratch, but should weigh in less for those riders who like to earn their turns. You can find all the details and specs inside!

Read on...
2011 Trek Scratch Air 9

Trek's Scratch Air series is new for 2011, and although it uses the same frame as it's coil sprung Scratch brothers, both models are air sprung in both the front and rear to shave some weight and offer a different ride characteristic. The new Scratch Air's are designed to fill the gap left by the Remedy's switch to shorter 150 mm travel forks, and they could be just the ticket for riders who want to cover a lot of ground on a reasonably light machine, but will take full advantage of the bike's stunt friendly 170 mm of rear wheel travel. With this in mind Trek has spec'd both Air models with a dual chainring and bash guard combo, but there are also ISCG03 tabs if you want to mount up a chainguide.

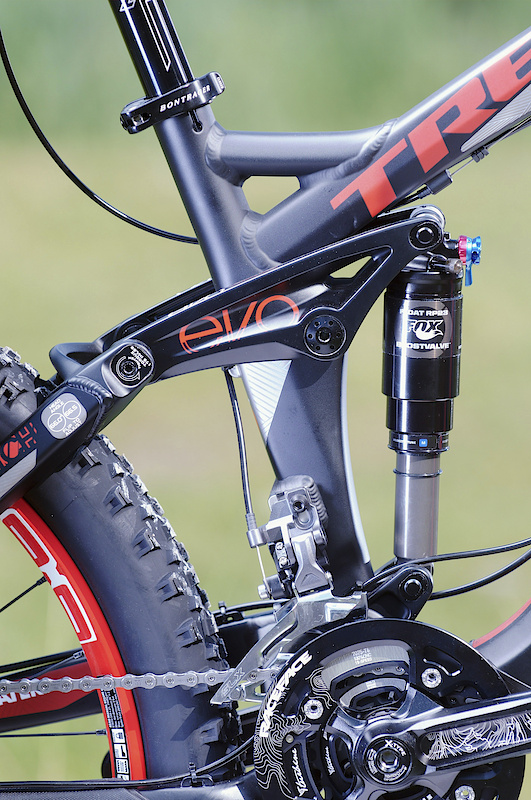

Just as on the coil sprung version, the Scratch Air uses Trek's Full Floater system

2011 Trek Scratch Air 9 details
  • Air sprung front and rear
  • 170 mm of rear wheel travel
  • Uses Trek's ABP Convert for active suspension while braking
  • 12 x 142 mm rear axle (convertible to 135 QR with supplied hardware)
  • Trail tuned Fox RP23 rear shock
  • Fox 36 Talas FIT RLC, 120-160 mm
  • Shimano 2 x 10 drivetrain
  • E2 Tapered headtube
  • Adjustable geometry via Mino Link
  • Two Scratch Air models: Scratch Air 9 (shown), and the Scratch Air 8

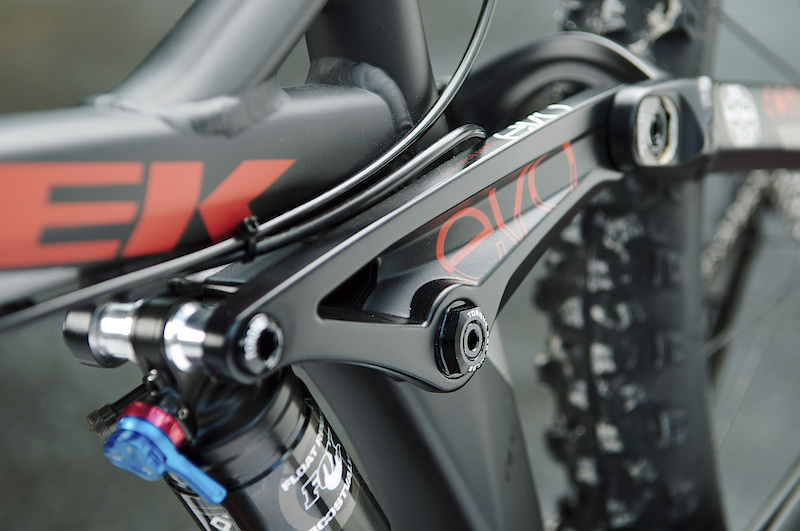

A welded one piece EVO Link and all aluminum pivot hardware

Trek uses both their Full Floater and ABP technology on the Scratch Air that you've no doubt seen on their other models. In simple terms, ABP (Active Braking Pivot) is Trek's name for their rear wheel pivot that rotates concentrically around the hub axle. The goal of the ABP system is to limit movement between the caliper and rotor as the suspension compresses and extends - the less the distance increases or decreases, the more active the bike will be under braking.

Full Floater refers to the rear shock not being bolted to the front triangle, instead it is attached to the EVO rocker link at the top and a short piece that extends from the chainstays beyond the main pivot. This gives Trek's engineers two places to tune the shock rate, as well as allowing them to build a slightly lighter due to not having to mount the shock to it.

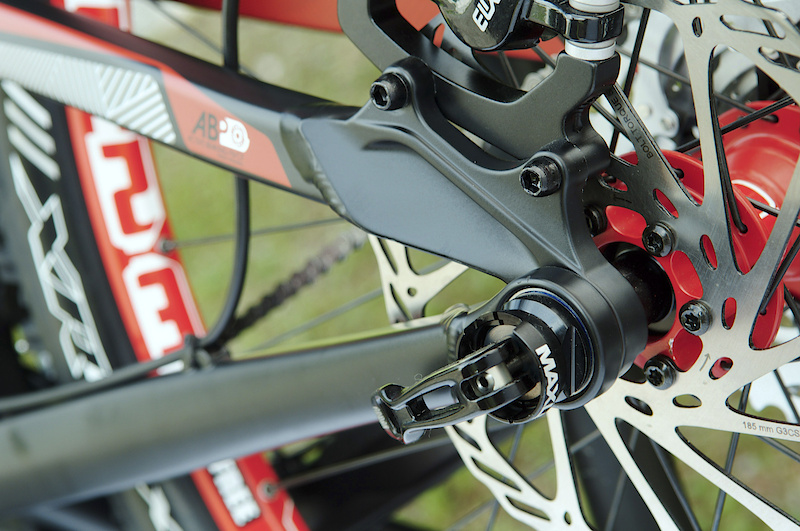

ABP Convert allows the use of either the stock 12 mm x 142 mm rear wheel, or a standard 135 mm QR

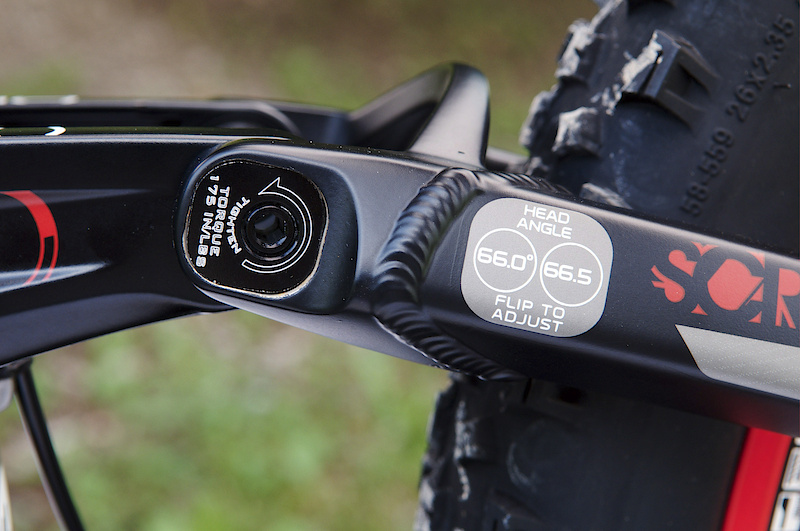

The Mino Link allows you to fine tune the Scratch Air's head angle by half a degree and the bottom bracket height by 7 mm

Trek has built in the ability to fine tune the Scratch Air's head angle and bottom bracket height but rotating the pivot hardware that holds the seatstays to the EVO Link. The Mino Link adjustment offers just a half a degree of change to the head angle and 7 mm of bottom bracket height difference, but it is enough to fine tune the bike for the terrain or your riding style. As you'd expect, up front you'll find a E2 tapered headtube that makes for a lighter system than a full 1.5" setup, but stiffer and stronger than the 1 1/8th standard.

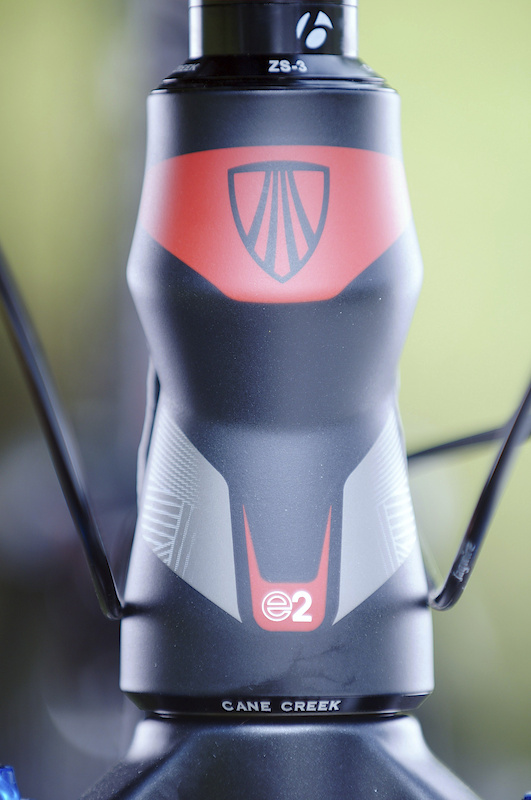

An E2 tapered headtube up front

2011 Trek Scratch Air 9 specs
Frame and SizeTrek Alpha Red aluminum
•E2 Headtube, EVO Link, ABP Convert, Full Floater
•170 mm
Rear ShockFox RP23, Trail tuned
•8.5" x 2.5"
ForkFox 36 Talas FIT RLC
•Air sprung
•E2 tapered steerer
•120-160 mm travel
HeadsetCane Creek Frustrum SE Light Edition
CrankarmsRace Face Atlas
ChainringRace Face bash guard/36/24
Bottom BracketRace Face
CassetteShimano M77110 11-36, 10 Speed
Rear DerailleurShimano XT
Shifter PodShimano XT 10 speed
HandlebarBontrager Rhythm Pro
StemBontrager Rhythm
BrakesAvid Elixir CR
Front WheelDT Swiss E 2000
•20 mm thru-axle
Rear WheelDT Swiss E 2000
•12 x 142 mm (convertible to 135 mm QR by using supplied ABP Convert hardware
TiresBontrager XR4 Expert, 2.35"
SaddleBontrager Evoke 4, titanium rails
SeatpostCrank Brothers Joplin 4R

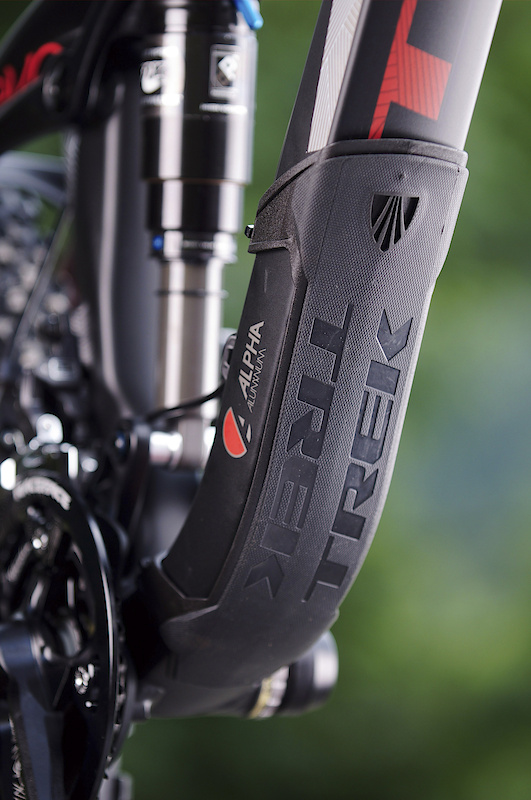

The detachable Aluminum Armor protects against rock strikes

The build kit on the Scratch Air 9 consists of a mix of workhorse parts and components that should stand up to most any riders abuse. The two chainring and 10 speed cassette with it's big 36 tooth cog make for suitable mountain goat gearing that should compensate for the added weight penalty of the extra travel and burly parts. Suspension is handled by Fox both front and rear, with a custom tuned RP23 out back and a much sought after '11 Fox 36 Talas FIT RLC up front.

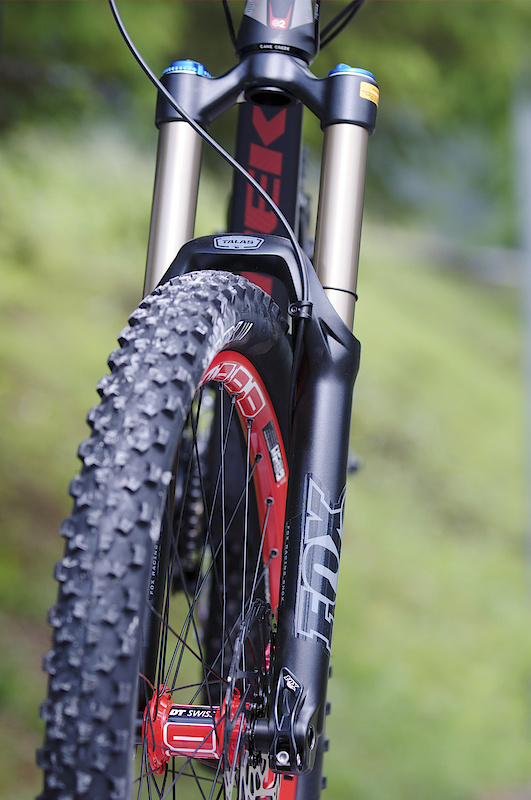

Fox's air sprung 36 Talas FIT RLC

Mike Levy on The Scratch Air 9

Those riders who felt a bit left out when Trek decided to replace the Remedy's 160 mm travel fork with a shorter and lighter 150 mm version should be excited to see the Scratch Air released for 2011. Both air sprung models look to have a reasonable weight that will make ascending not too much of a chore, but the combination of slacker angles and more sag from it's 170 mm travel rear end should make for a very confident descender. The new Scratch Air platform looks to be an exciting addition for 2011.

Mike enjoying the Scratch Air 9

Read on about the Trek Remedy 9.9 and Trek Scratch 9 if you missed them last week

Visit the Trek website to see their entire lineup.

All photos by Sterling Lorence
