Race Face 2012: Exclusive First Look - Eurobike 2011

Aug 31, 2011
by Julian Coffey
SIXC: THE WORLD'S LIGHTEST DH RACE CRANK?

  Building on the success of their proprietary Canadian carbon manufacturing program, Race Face has made some impressive expansions to the SIXC line of cranks for 2012. The addition of an 83mm spindle, 165mm length and removable granny spider make the 2012 SIXC a formidable DH race option coming in at a scant 650g (165mm, 83mm, 36T ring, including Turbine BB). This is a full 100g lighter than any other full carbon DH crank that we know of.

NEW FOR 2012
• 165/83 Size
• Steel Pedal Inserts - Upgraded from 7075-T6 to CrMo steel
• Fat tab technology - Burly 4.5mm Chainring tab standard


  Using Race Face's propriety optimized carbon technology, the SIXC crankset is completely hollow, with all unnecessary material removed from the centre core. The composite arms are 100% carbon with no internal aluminum spine. Here's a look at the guts of a SIXC crank, or rather no guts, just hollow carbon goodness.

SIXC features a specifically engineered, superlight, CNC machined CrMo spindle that directly moulded into the drive side crank arm to minimize weight and maximize power transfer. 3mm of chainline adjustability ensures the ability to achieve perfect drivetrain alignment even with difficult suspension frame designs and is ideal for fine-tuning shifting chainguide set-ups.

BUILT FOR:
DH Race/Light FR
SIZE:
165, 170, 175 in 68/73mm BB shell - 165, 170 in 83mm BB shell
Also available with BB92 press-fit
WEIGHT:
650g (165mm, 83mm, 36T ring, including BB)
750g (170mm, 68/73MM, 24/36/Bash, including BB)
B.C.D: 64/104mm
RING CONFIGURATIONS:
Single 36T
24/36/BASH
Armset w/BB
COLOUR: Matte Carbon



NEXT SL 2X10 CRANKS

  The NEXT SL 2X10 crank represents the next generation of Race Face carbon cranks, hand made in Canada. Weighing in at an astounding 595g including BB, Next SL 2X10 cranks are the lightest, strongest 100% carbon fiber MTB cranks ever made. Race Face has created a crank that goes beyond existing carbon material & process limitations, setting a new benchmark in performance XC race and trail components.

  2x10 Turbine rings: 26-38 config - still machined in BC, Canada.

  Turbine X-Type - all shaved down with some fancy new innards.

BUILT FOR:
XC Racing/Trail
SIZE:
170, 175mm & 68/73mm BB shell. Also available with BB92 press-fit or BB30 conversion bottom bracket assembly
WEIGHT: complete with bb
595g (26-38T, 175mm)
610g (28-40T, 175mm)
CHAINLINE:
49.5mm (48.5-50.5mm adjustable)
B.C.D: 80/120mm
RING CONFIGURATION:
26/38 Turbine 10 speed
28/40 Turbine 10 speed
COLOUR:
Gloss Carbon



ATLAS

Introducing the second generation Atlas cranks, Race Face's lightest big hit freeride cranks ever.  Continuing to utilize the same proprietary OPTIM-AL alloy (20% stronger than 7050), these cranks have been updated to utilize our EXI (external ISIS) interface for improved installation and removal.
  Introducing the second generation Atlas cranks, Race Face's lightest big hit freeride cranks ever. Continuing to utilize the same proprietary OPTIM-AL alloy (20% stronger than 7050), these cranks have been updated to utilize our EXI (external ISIS) interface for improved installation and removal.

NEW FOR 2012
• 31 to 81grams lighter than 2011 - 822g (165x36T, w 68/73 + BB) 842g (165x36T, w83 + BB)
• EXI interface complete with self extracting puller cap
• Fat tab technology – Burly 4.5mm Chainring tab standard
• Light weight removable granny ring
• Updated graphics
• Raw finish option

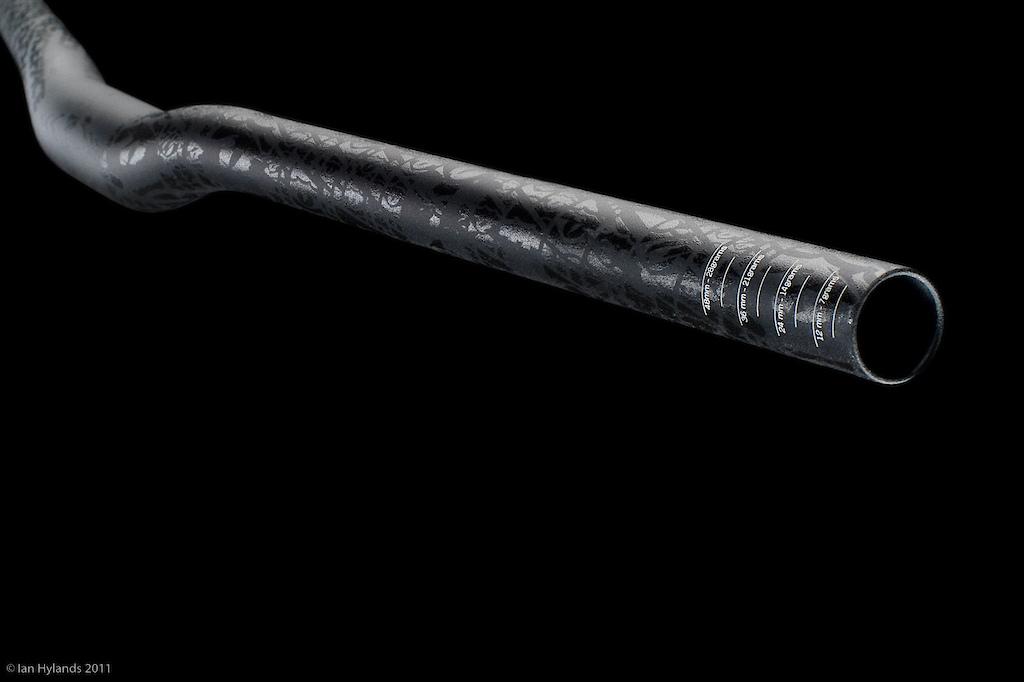

ATLAS BARS

NEW FOR 2012
• High rise (1.25’)
• With updated graphics across the line.


Wide and stealthy, Atlas bars are the de facto upgrade for any ripper.
  Wide and stealthy, Atlas bars are the de facto upgrade for any ripper.


2012 PROTECTION

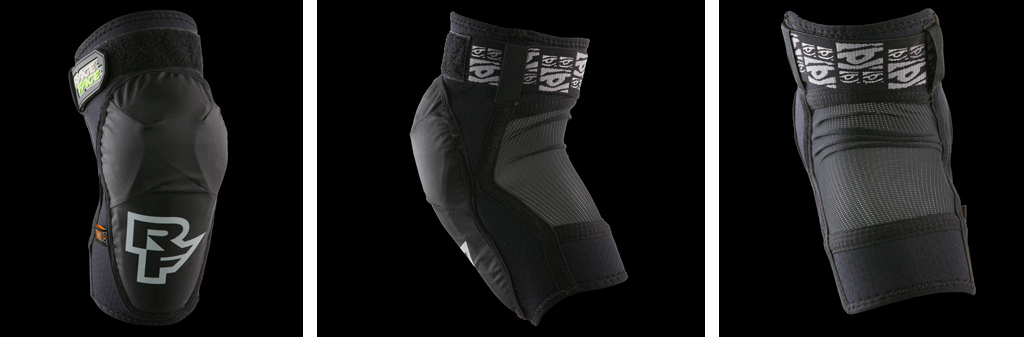

The Race Face 2012 protection line is all about the elbows! Low-profile, comfortable elbow designs that won't slip down mid-ride. The New Ambush Elbow features d3o technology and pairs with returning Ambush Knee & Flank Leg; offering riders the ultimate in setup flexibility. Aesthetic updates to the pads highlight the new RF race moniker.

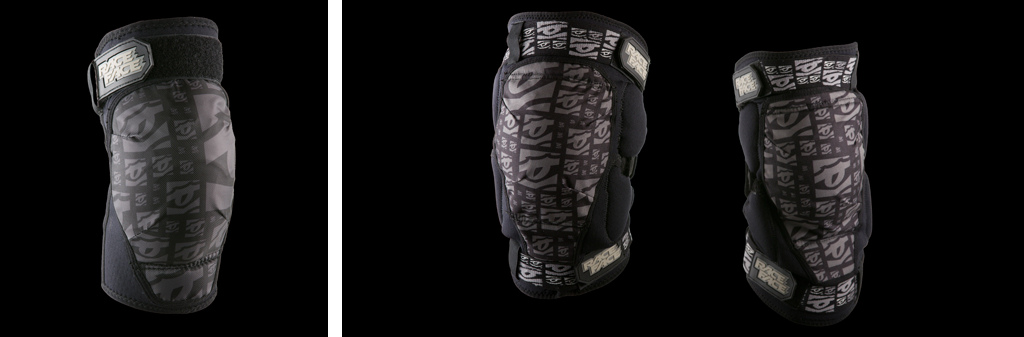

  New Dig Elbow offers a hard shell alternative with soft shell look and feel. The Dig Knee gets the open-back treatment this season incorporating the 'easy-on, easy-off ' design technology from it's d3o counterpart, the Ambush. - Pad up with no shoe removal! The Dig's younger brother, Digger Elbow & Knee, also launch this season so younger shredders can go low-profile.



2012 APPAREL

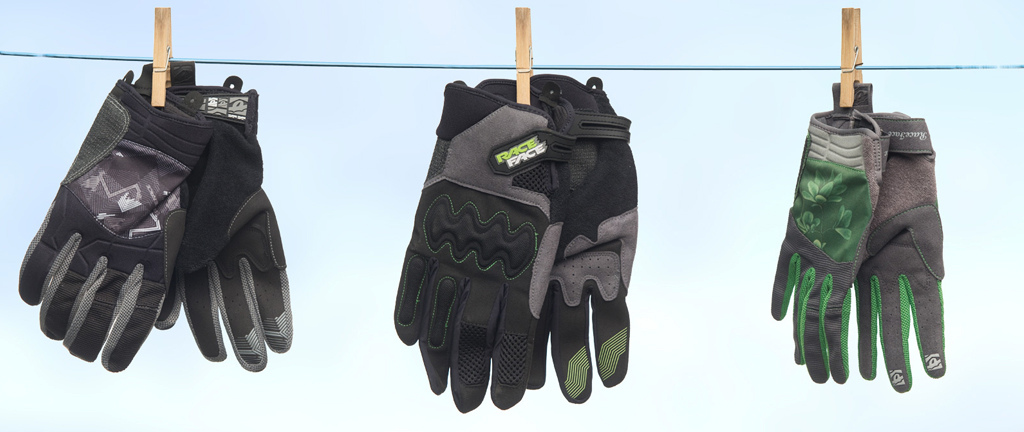

SPRING SUMMER GEAR: FOR HIM

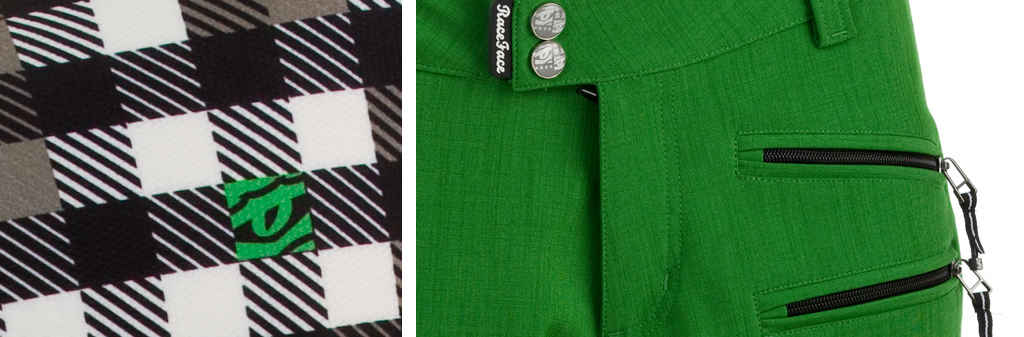

Like green? Vibrant Green is strong through the 2012 line offering a fresh option to many of the other more pedestrian black and grey offerings out there. The Ambush short returns with exclusive Race Face Tweedster fabric. A DH kit stylish enough to evoke a compliment from even your crustiest buddy yet burly enough not to fall apart the first time you eat shit.




BLOCK COLLECTION: STREET MEETS PERFORMANCE

Designed for riders who seek performance in a casual package, the Block collection includes jerseys designed to look and fit just like comfy tees, technical stretch denim jeans that allow a full range of motion, a technical jacket and super light slip-on glove.




SPRING SUMMER GEAR: FOR HER

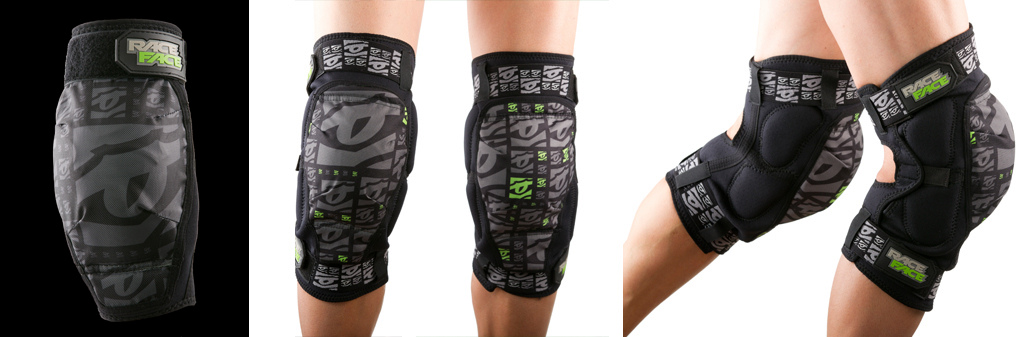

  New Khyber Elbow teams up with the Khyber Open-Back Knee this season offering hard shell protection with a soft shell look and feel. This isn't just a scaled down version of men's protection; the Khyber is built for female-specific fit. The elbow is low-profile, comfortable and hugs just enough so it won't slip down mid-ride and the easy-on-off technology in the Khyber Knee construction allows you to pad up quickly when the trail warrants.

  The Khyber short became a must-have in gear closets for 2011; 'the little black dress of downhill'. This season it returns with Race Face exclusive Tweedster fabric in three colour options (black, gravel and vibrant green) and kits out with matching Khyber elbow, knees, glove and jersey.

For more info, check out raceface.com.
