First Look: 2015 Gravity Components - Sea Otter 2015

Apr 16, 2015
by Mike Kazimer
We first caught a glimpse of Gravity Components' 'Grid' product line at this year's Taipei Cycle Show, but at the time the specifics of the group hadn't been finalized. Intended for everything from trail riding to enduro racing, the new line includes cranks, a 35mm stem and bar, a chainguide, and a wheelset, all constructed from aluminum. Gravity's goal was to create products that were affordable, yet offered performance that put them on par with higher priced offerings.




Grid Stem

Thanks to changes in mountain bike geometry, short stems are more common than ever, so in keeping with the times Gravity offers the Grid stem in 35mm and 50mm lengths. There's an accompanying bar as well (not pictured) that's available in 760 and 800mm widths with 8° of back and 5° of up sweep. The aluminum bar weighs a claimed 303 grams, and will retail for $59.

Details
• 35mm handlebar clamp diameter
• Black anodized
• Weight: 135 grams (35mm)
• Price: $69 USD
Gravity 2015

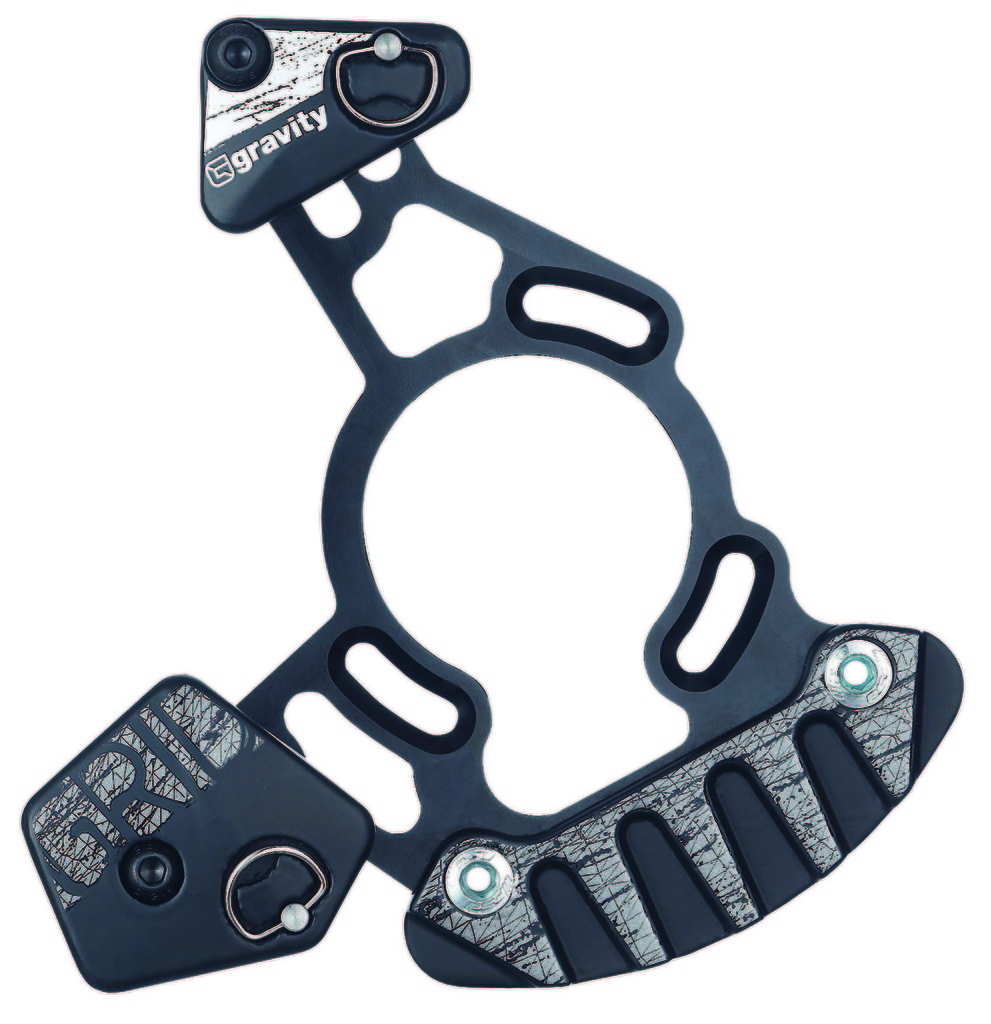

Grid Chainguide

Many chainguides require a certain level of disassembly in order to access the chain or remove a crankset, but with Gravity's design the upper and lower guides have a cotter pin style mechanism that allows them to be rotated out of the way without the use of tools.

Details
• ISCG 05 Compatible and adaptable to threaded BB
• 4pc modular system
• CNC aluminum backplate
• Modular polycarbonate guides and bashguard
• Tool Free Swing-away guides
• Quick release upper and low guides
• Replaceable bash guard
• Chromoly hardware
• Sizes: 28-34 and 34-38 tooth chainrings
• Black anodized
• Weight: 160 grams
• Price: $109
Gravity 2015



Gravity 2015
Gravity 2015

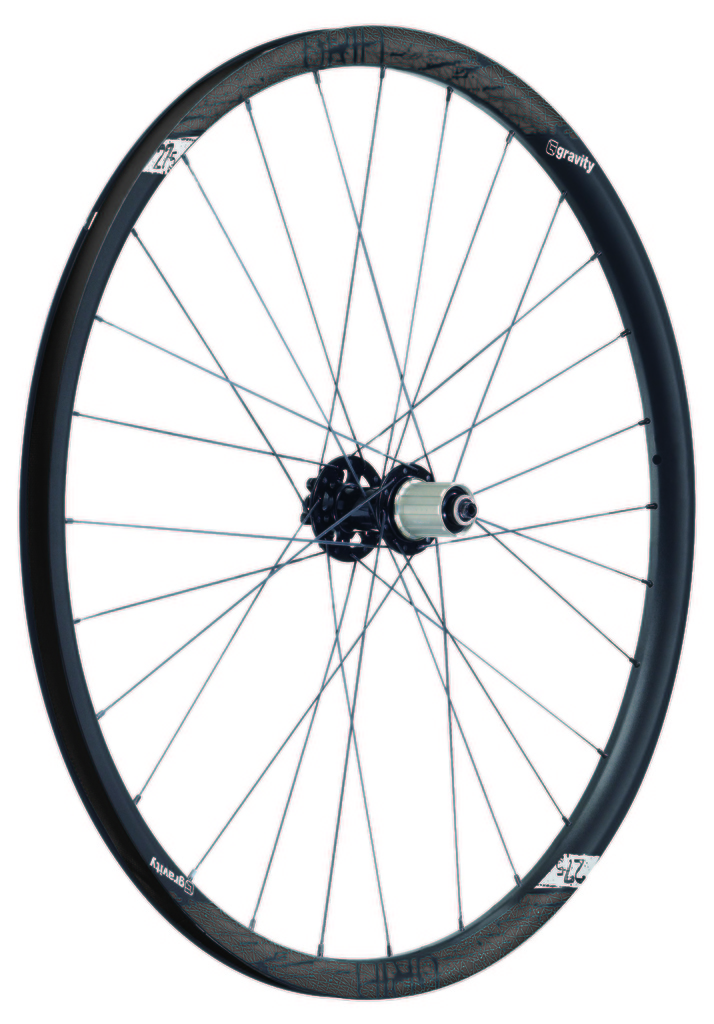

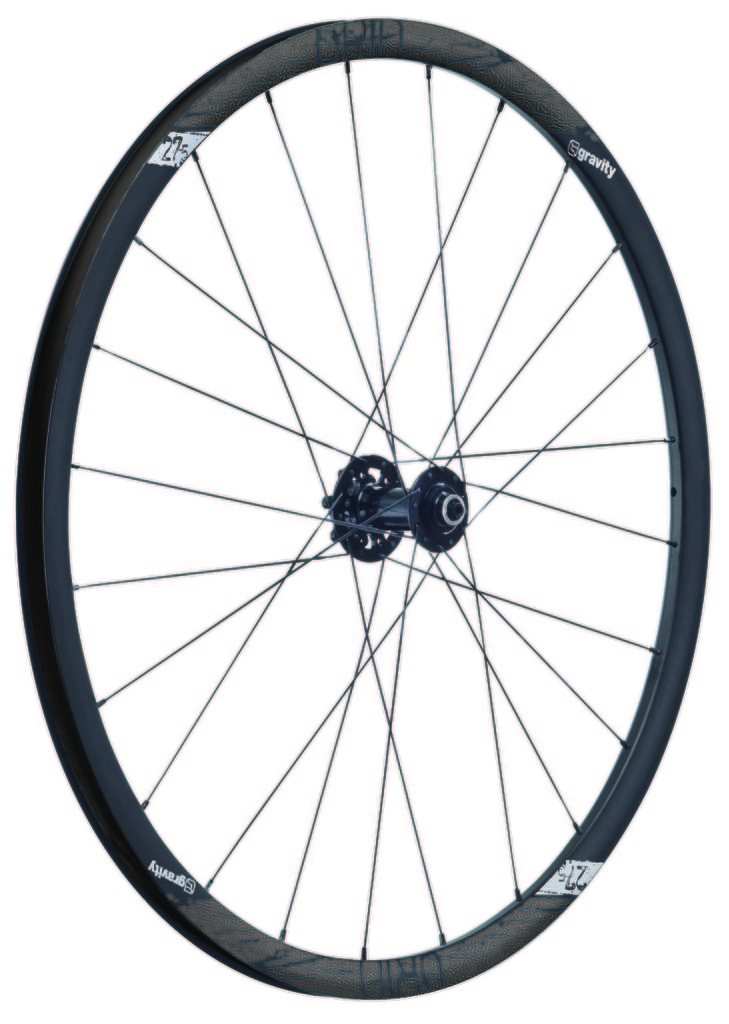

Grid Wheelset

Stems may be getting shorter, but rims are getting wider, and the Grid wheelset boast an internal rim width of 27mm. The rims are drilled with a 4mm offset that's intended to allow more equal spoke tension, which Gravity claims increases overall wheel stiffness.

Details
• Hookless bead
• Asymmetric, 25mm deep x 27mm wide alloy rim
• Tubeless compatible
• Front hub with 15mm thru-axle compatibility; rear hub with135QR or 12 x 142mm axle compatibility
• Stainless steel bearings
• 2 cross double butted spokes with brass nipples
• Handbuilt
• Freehub body for Shimano 9-11sp or 11-spd XD TM driver
• Spokes: 28 front wheel, 2 cross; 28 rear wheel, 2 cross
• Weight: 27.5" – 1850 grams / pair (w/o QR), 29" – 1980 grams / pair (w/o QR)
• Price: $599



Grid MegaExo Crankset

Available in 170 or 175mm lengths for 68 or 73mm bottom bracket shells, the MegaExo crankset's arms are hollow forged from one piece of 6066 aluminum. The four bolt chainring uses teeth that are slightly taller than the norm, and use an alternating thick / thin profile to provide a high level of chain retention.

Details
• Q-Factor - 168mm
• BCD - 104/64mm
• Chainline - 48.5mm
• 38/24T, 36/22T
• 34T, 32T, 30T
• Black anodized
• Color graphics
• Weight: 785g
• Price: $249 USD
Gravity 2015

www.ridegravity.com
