Tech Tuesday - Converting Mavic Crossmax SX Axles

Nov 15, 2011 at 0:03
Nov 15, 2011
by Richard Cunningham

You must login to Pinkbike.
Don't have an account? Sign up

Join Pinkbike  Login

Mavic's tubeless Crossmax SX wheelset is light enough for trail use, but designed to take all-mountain and even park riding in stride. To encompass the wide range of frames and forks in these categories, Mavic designed the SX hubs to accept a variety of quick release and through-axle configurations. The two most popular for all-mountain are a QR-dropout frame paired with a 15QR through-axle fork, and the 142/12-millimeter through-axle frame with either a 20-millimeter or a 15QR through-axle fork. Mavic includes conversions for all three of the above configurations with the SX wheelset. In this Tech Tuesday, we go over the steps to convert Mavic's SX axles from quick release to through-axle in the rear and from 20-millimeter to 15QR in the front hub. The basic switch is easy to do and once you go over the steps, you will be able to convert to all of Mavic's axle options like a pro mechanic.

Mavic makes it simple to switch from quick release to through axle hubs with 15mm or 20mm options up front and either 142 12mm or quick release in the rear. If you must have a quick release front axle then you can order the QR endcaps separately - otherwise Mavic ships a set of alternative endcaps and special hub tools with each set of SX wheels.

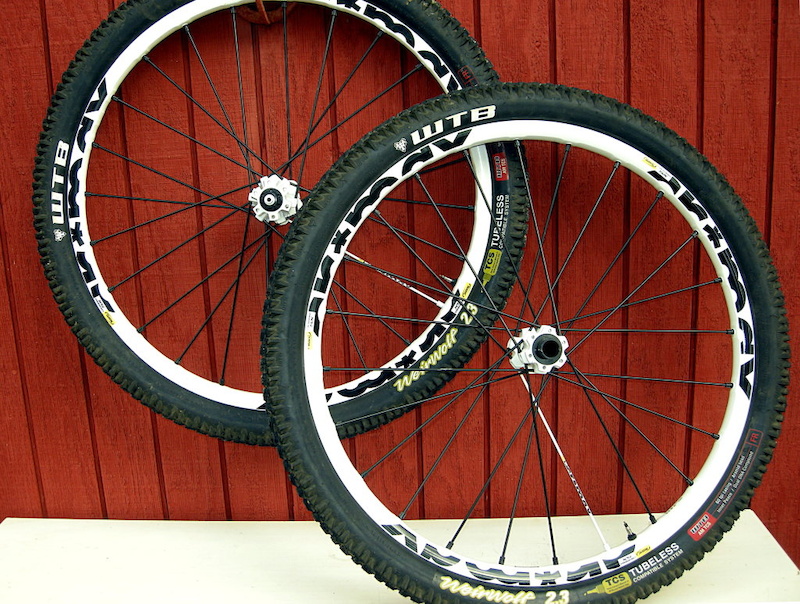

Pinkbike starts with a nearly new set of Mavic Crossmax SX wheels in stock configuration and using the parts Mavic ships in its SX wheelset kits and minimal tools, it was a snap to convert the axles to fit a 142/12mm rear through-axle frame and a QR15 through-axle fork.

Mavic Axle Tips:
• As always, start with a clean work area and clean parts. You won't want to be exposing the inners of the freehub and expensive bearings to grime.
• Mavic hubs use fine threads and close tolerances, so use care and a tiny bit of lightweight grease on the endcaps and axles to assist the assembly process.
• This is an easy job, but Crossmax SX wheels are not cheap, so if you don't feel confident once you get into it, have a good shop finish the conversion for you.
More info on Mavic Crossmax SX wheels

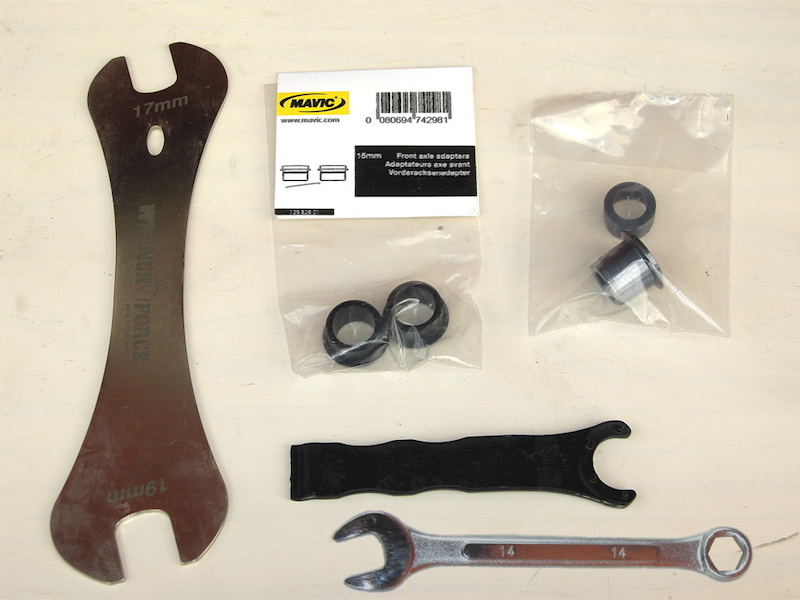

Things You ll need clockwise 17mm cone wrench Mavic 15mm front-hub endcaps Mavic 142 12mm rear-hub endcaps Mavic bearing adjust tool 14mm cone wrench or open-end wrench.
Things You'll need: (clockwise) • 17mm cone wrench • Mavic 15mm front-hub endcaps • Mavic 142/12mm rear-hub endcaps • Mavic bearing adjust tool • 14mm cone wrench or open-end wrench.



Crossmax SX Front Axle: 20mm to 15QR Through-Axle

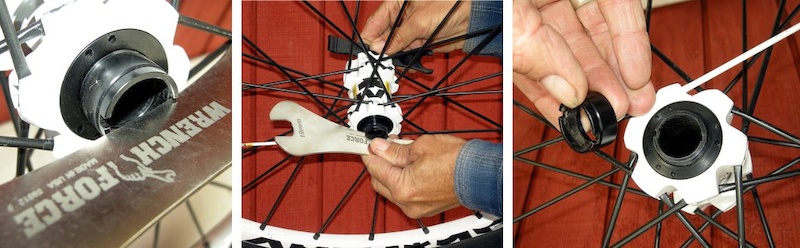

Starting with the front hub find the notches in the 20mm endcaps and fit the edges of the cone wrench and Mavic bearing adjust tool in the slots on opposite ends. Unscrew counter-clockwise and one endcap will come off.
Starting with the front hub, find the notches in the 20mm endcaps and fit the edges of the cone wrench and Mavic bearing adjust tool in the slots on opposite ends • Unscrew counter-clockwise and one endcap will come off.

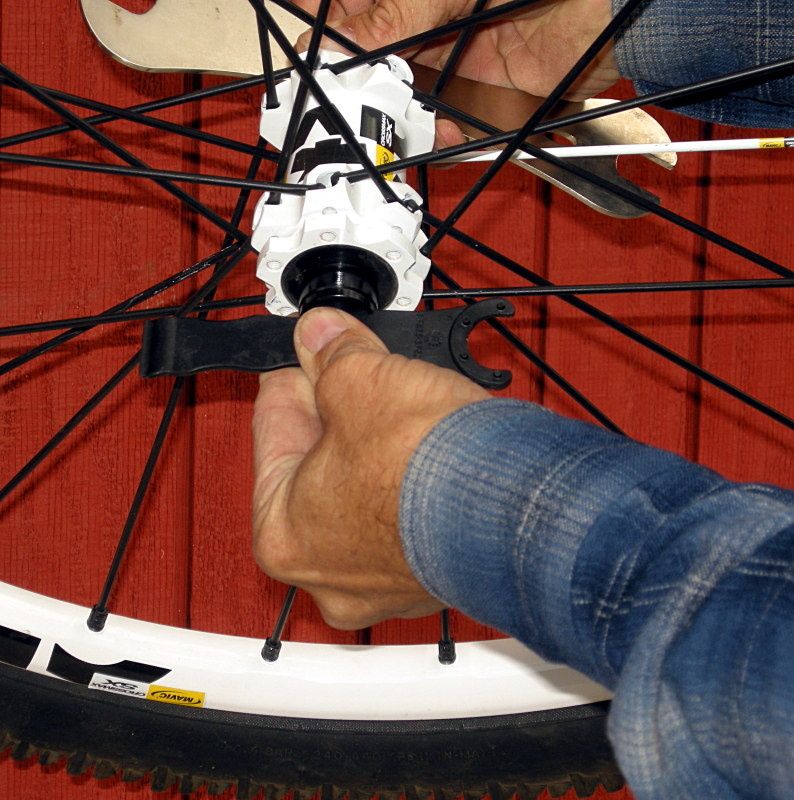

Slip the edges of the cone wrench and Mavic Bearing tool into the notches in the exposed axle end and remaining endcap to remove the opposite side.
Slip the edges of the cone wrench and Mavic bearing tool into the notches in the exposed axle end and the remaining endcap to remove the opposite cap.

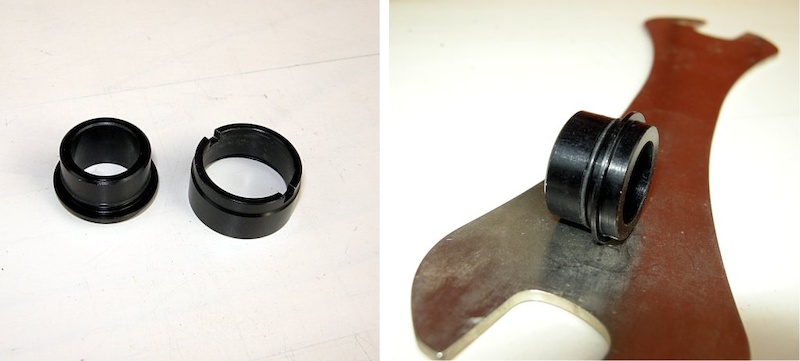

The new 142 12mm front endcap left next to the original 20mm endcap. Notice the O-ring right behind the flange that retains the new 142 12mm endcap inside the Mavic hub axle. The O-ring locks the new endcap in place.
The new 15mm front endcap (left) next to the original 20mm endcap • Notice the O-ring (right) behind the flange that retains the new 142/12mm endcap inside the Mavic hub axle. The O-ring locks the new endcap in place.

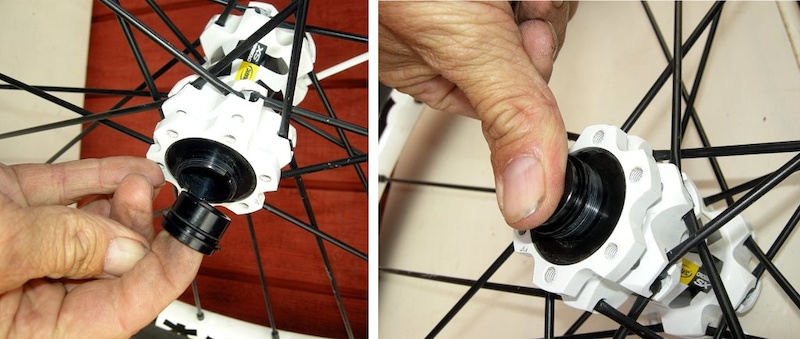

Put a tiny amount of grease inside the hollow axle and then slip the endcap into the axle with the short end facing outwards. Push it in firmly by hand until the flange sits flush with the end of the axle. Repeat on the opposite side.
Put a tiny amount of grease inside the hollow axle and then slip the endcap into the axle with the short end facing outwards • Push it in firmly by hand until the flange sits flush with the end of the axle. Repeat on the opposite side.

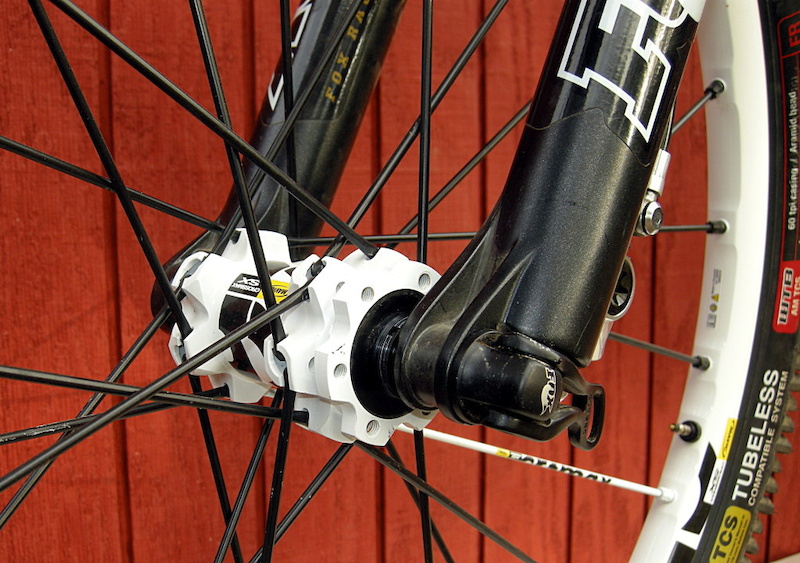

The front axle has been converted successfuly. Note that there are threads exposed where the 20mm endcaps threaded onto the axle. No worries there.
The front axle has been converted successfuly. Note that there are threads exposed where the 20mm endcaps threaded onto the axle. No worries there.



Crossmax SX Rear Axle: Quick release to 142/12-millimeter Through-Axle

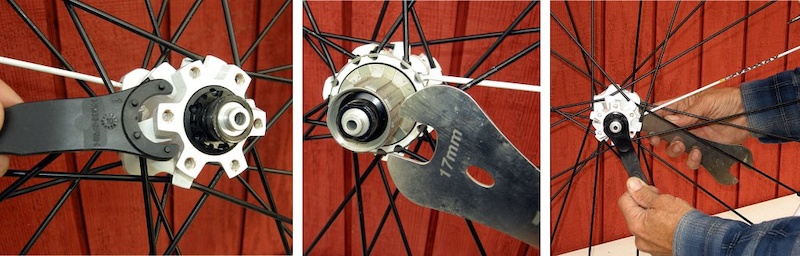

Starting on the rear hub locate the nubs on the Mavic bearing adjustment tool and note that they engage the inner flange on the left side. The left-side endcap is only held in by an O-ring. If it won t pull off by hand then slip the 17mm cone wrench over the endcap on the drive-side of the rear axle and then unscrew the bearing adjustment flange. This will press off the left-side cap.
Starting on the rear hub, locate the nubs on the Mavic bearing adjustment tool and note that they engage the inner, bearing-adjustment flange on the left side. The left-side endcap is only held in by an O-ring • If it won't pull off by hand, then slip the 17mm cone wrench over the endcap on the drive-side of the rear axle and then unscrew the bearing adjustment flange. This will press off the left-side cap.

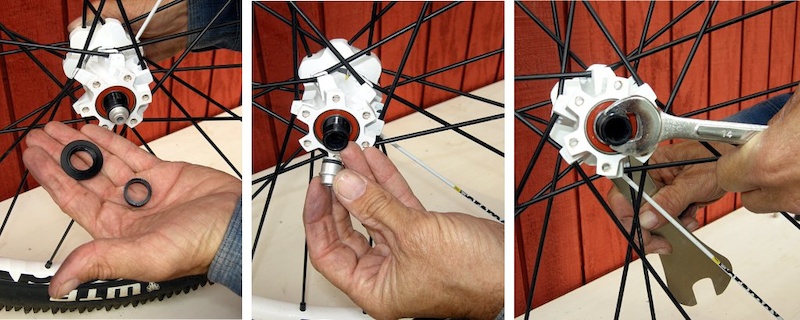

Once the threaded bearing adjustment cap presses off the endcap spacer pull out the Quick release axle plug by hand. Now slip a 14mm wrench over the exposed axle flats and slip the 17mm cone wrench on the drive-side endcap.
Once the endcap spacer is off, pull out the quick release axle plug by hand • Now slip a 14mm wrench over the exposed axle flats and slip the 17mm cone wrench on the drive-side endcap.

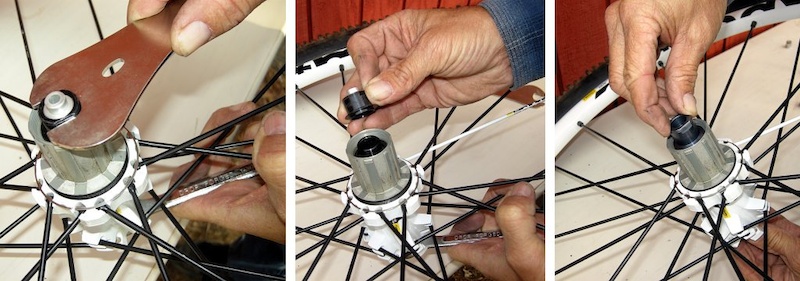

With the 14mm wrench in place on the axle unscrew the drive-side endcap with the 17mm cone wrench. The quick-release plug will come off with the endcap. Now thread in the new 142 12mm endcap hand tight.
With the 14mm wrench in place on the axle, unscrew the drive-side endcap with the 17mm cone wrench • The quick-release plug will come off with the endcap • Now, thread in the new 142/12mm endcap finger tight.

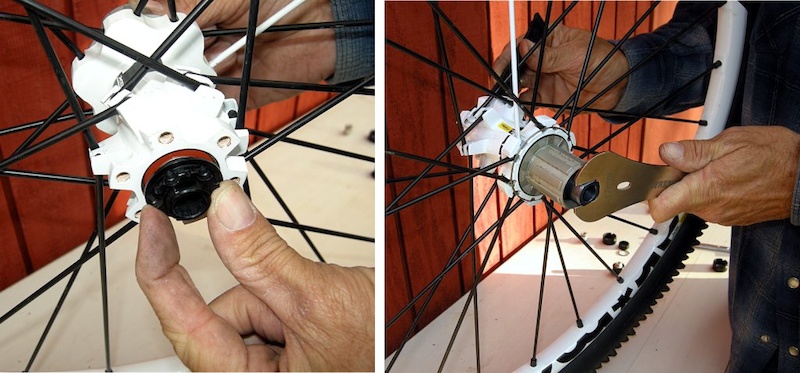

Thread in the left-side bearing adjustment flange finger tight. Use the Mavic bearing adjustment tool and the 17mm cone wrench to set the bearing preload just tight enough so there is no end play and the axle runs friction free in the hub.
Thread in the left-side bearing adjustment flange finger tight. Do not use grease on the adjustment cup as it needs friction to retain the bearing preload setting • Use the Mavic bearing adjustment tool and the 17mm cone wrench to set the bearing preload just tight enough so there is no end play, and the axle runs friction free in the hub.

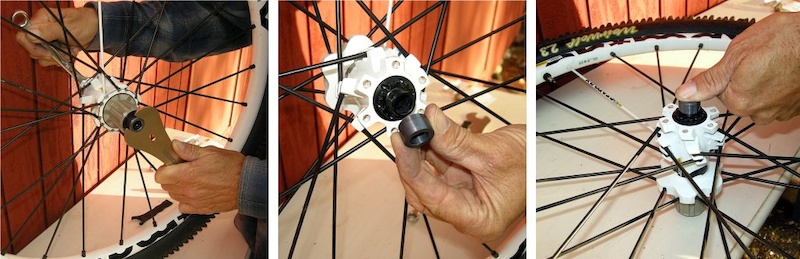

After you have adjusted the hub bearings slip the 14mm wrench on the left side axle and use the 17mm cone wrench to tighten the drive-side endcap snug is good don t overdo it . Slide the let-side endcap onto the axle and then snap it into place with hand pressure.
After you have adjusted the hub bearings, slip the 14mm wrench on the left side axle and use the 17mm cone wrench to tighten the drive-side endcap (snug is good, don't overdo it) • Slide the left-side endcap onto the axle and then snap it into place with hand pressure.

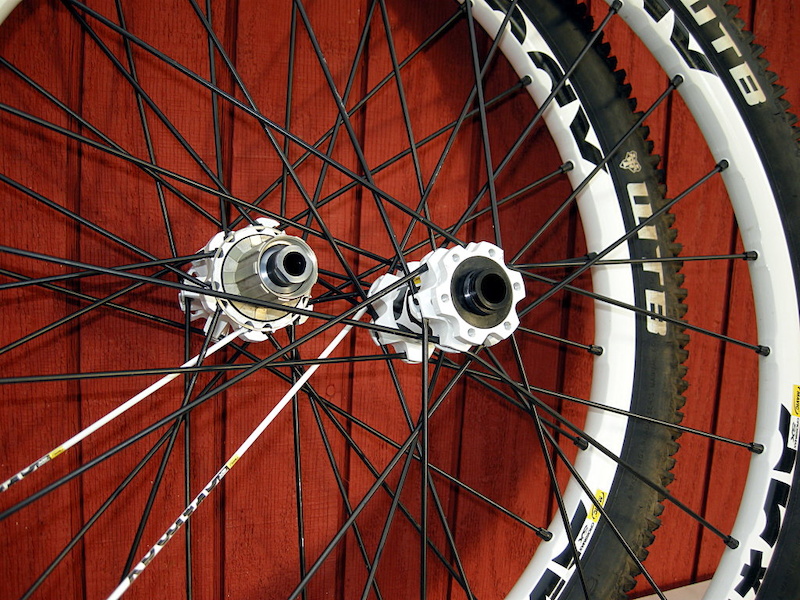

Our Mavic Crossmax SX wheelset is ready for the trail - 15QR front and 142 12mm rear. The job from start to finish required only 35 minutes.
Our Mavic Crossmax SX wheelset is ready for the trail - 15QR front and 142/12mm rear. The job from start to finish required only 35 minutes.
