Zerode Taniwha - Crankworx Rotorua 2016

Mar 10, 2016
by Paul Aston


tani:fa – noun: (NZ) A legendary Maori monster, considered highly respected guardians of people or places.


Rumors of a Zerode enduro bike have been floating around the scene for a few years since this hand-made carbon prototype was scoped a couple of years ago. Having spoken to those who rode the high-pivot, gearbox-propelled, Zerode G1 or G2 downhill bikes, we rarely heard anything but praise, so their prototype enduro design promised to be another high pivot hell-raiser. Zerode's new Taniwha, however, is an entirely new design, with a carbon fiber chassis, a different brand of gearbox, and a much more conventional suspension configuration. Designer Rob Metz let us photograph one of his first production samples and gave us the lowdown on this stunning enduro racer. Find out how and why in the interview below, and take the time to check out the Metz Lab.


Zerode's G1 downhill bike first appeared in 2010, and the refined G2 version was one of the first to bring a super slack 62.5º head angle to production. It doesn't look like the Taniwha has missed the contemporary geometry boat, with a 65º head angle, a 74.5º seat angle, and with chainstays tucked in tight, at 430mm. The 445mm reach for the large frame isn't huge, but the XL jumps to a roomy 475mm. Medium and large frames will be the first out of the mold, landing around July-ish, with an XL and maybe a small size following shortly afterwards.

Gearbox Facts

The Taniwha's carbon frame is molded to bolt directly to the aluminum housing of its 12-speed Pinion transmission. The constant-mesh type gearbox promises years between service and, unlike a chain-drive transmission, the Pinion's matched gearsets make it possible to deliver equal steps between shifts, and a massive, 600% spread between low and high selections.

Pinion also make an 18-speed version of their gearbox, but Rob Metz upholds that it isn't necessary for AM/enduro, and stated that it also would add an extra 350 grams. Interesting to note, that Zerode have gone with a standard chain over the belt-drive found on other gearbox bikes like the Cavalerie Anakin and the Nicolai ION-GPI.

A derailleur-style chain tensioner is installed behind the chainring to compensate for chain growth from the suspension. No gears at the rear means a lower unsprung mass for better suspension response, ensures a perfect chain line, and makes it possible to build a zero-dish rear wheel to boot.
Zerode Tanihwa 2016
Pinion transmissions are shifted with an indexed twist-grip that uses a push-pull, twin cable arrangement.

Zerode Tanihwa 2016
Inside the compact housing are two shafts with matching gear-sets. Shift-pawls engage one gear-set at a time, leaving the others to freewheel.

Zerode Tanihwa 2016
The swingarm's pivot location requires a spring-loaded chain tensioner.
Very tidy hardware used throughout the frame
One driven sprocket allows the use of a dishless single-speed hub.
Zerode Tanihwa 2016
Custom internal routing for the Pinion gearbox controls.


Thanks to the gearbox and the constant chain position, the Taniwha achieves 'the ideal' amount of anti-squat throughout the bike's 160mm of travel. This is impossible to achieve with a normal derailleur system, as the ever-changing sprocket diameters alter the effects of chain tension upon the rear suspension.

Zerode Tanihwa 2016
Zerode Tanihwa 2016

Even with a 5th cable out the front the cockpit still looks tidy
Even with a fifth cable out the front, the cockpit still looks tidy.

Zerode Tanihwa 2016
Zerode Tanihwa 2016




Zerode Tanihwa 2016
INTERVIEW

Rob Metz

Rob Metz: proud father of two.


We saw a prototype trail bike a few years ago. What did you learn from that and how does the new design differ?

First of all, I learned that I never want to go back to using a derailleur: I want quiet, a huge range, low maintenance and shifting without pedaling. Plus, that new bike feeling all of the time. Secondly, I learned that it is very difficult keeping an idler pulley quiet enough to be acceptable on an enduro/trail bike. To achieve this, the idler would need to be chainring sized, which makes the bike heavier, more complicated, and confusing for the masses. The final design reflects this, with a move to a more traditional pivot placement. I thought long and hard about this. The high pivot is a must on my DH bike, but in practice it wasn’t the best solution for the Enduro bike.

When will the bikes be available? Are you continuing with the dealer/distributer sales model?

These are the first frames out of the production moulds, so there is a little bit of testing between now and pushing the "go" button. Production should take about three months, so we are looking at about July for production bikes. I will likely continue with the current model of selling direct, as well as via shops and distributors.


Did you test any other systems like Effigear, or the Alfine hub you use in the DH bike?

I’ve ridden the Alfine for a long time now. It just isn’t suited to the needs of an enduro bike. I liked the Effigear, but the execution of the Pinion is very German – i.e. Efficient and precise. I’ve been running an 18spd Pinion on my bike now for over two years. I’ve worn out one rear sprocket. I'm still on the same chain. I've never adjusted the gears, and never missed a gear. They aren’t perfect - but a derailleur is far from perfect.


Is the DH bike dead? Was it consumer demand that changed, or personal motivation to build a trail bike?

I think DH is the F1 of MTB. It’s so exciting. These guys are gladiators, putting on an impressive show for us. I’d love to really go to town on the DH bike. I have drawings, CAD models and a complete working bike in my brain, but my limited resources are tied up in the enduro bike at the moment. Hopefully, this will change in the near future.

Personally, the versatility of a trail/Enduro bike is what I like. It’s what got me building 150mm travel trail bikes in the 90’s. The reason the Zerode Taniwha is happening now is that all of the elements exist that allow me to produce a very competitive enduro bike.


Everyone I've spoken to who rode a Zerode G1 or G2 only sings its praise. Do you think the DH bike was misunderstood by the mainstream?

There is a massive lack of understanding of suspension in general. When you understand the theory and configuration of the Zerode G1 or G2, it's a no brainer for DH. When you ride one, it becomes clear. Unfortunately, not everyone gets to ride a Zerode. I learned a lot from the DH bike. If I get a chance to revisit DH, it should have a chance of going a lot more mainstream.


Do you think this trail bike can help get gearboxes to the masses?

YES! If you weren’t waiting for this bike, you should be. I’ve been mountain biking for 25 years, ridden all sorts of bikes, on a huge range of terrain. There is no way I am going back to a derailleur. Ever.

What are the main advantages of a gearbox and a high-pivot swingarm?

As you can see, I have moved away from the high pivot on the Enduro bike. I touched on this in the first question. This decision was a tough one, but having ridden the first frames out of the moulds, I know I made the right decision. The 12-speed Pinion gearbox offers a huge spread of gears that go well beyond today's 1x11. Whether you are grinding up an epic backcountry singletrack, or blasting down a high speed fire-road, there is a gear to do the job. An unexpected pinch climb will never be a problem again. Changing gear is effortless and immediate, super reliable, and low maintenance, you can change gear without pedaling and never rip derailleurs off. A significant reduction in unsprung weight ensures suspension performance that is undeniably better than any enduro bike equipped with a rear derailleur. Symmetrical spoke angles ensure a very strong, light rear wheel that further improves suspension performance.

The frame itself uses a simple, effective and proven suspension platform. This, combined with a fixed chain line, optimizes pedaling performance through the entire travel range. It is difficult to approach the elegance and performance of this layout with any virtual pivot design. A sleek full-carbon frame offers excellent stiffness, reduced weight and flawless beauty in a modern geometry.


I can’t wait to get on the production bike!



The Metz Lab

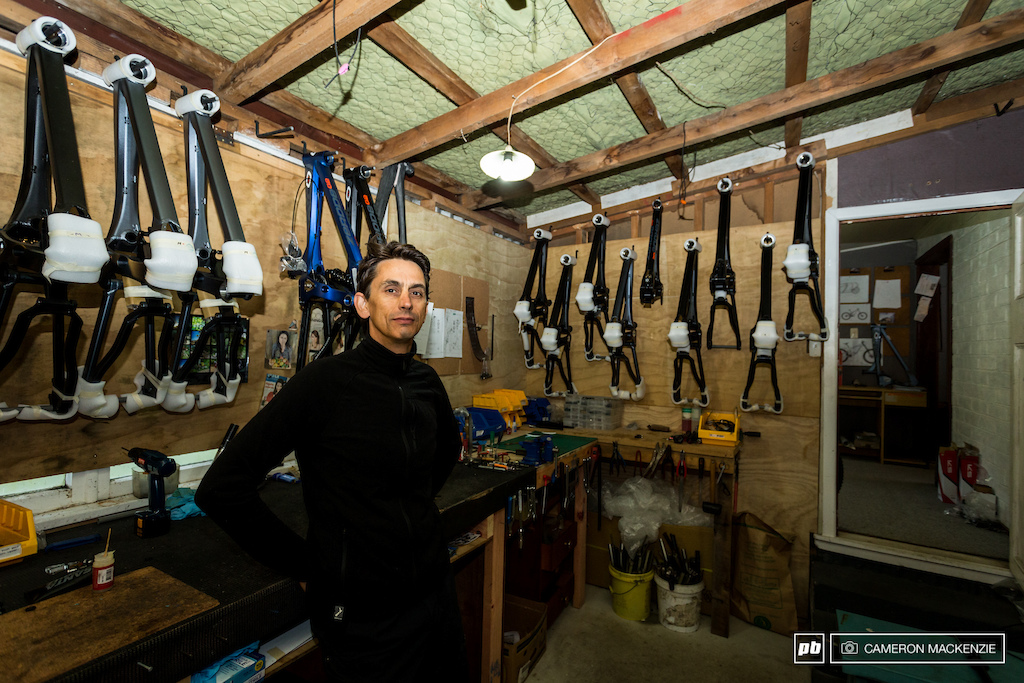

Rob in his workshop A main with so much knowledge and many ideas.
Rob and his workshop that bred the Zerode dream.

Robs original High Pivot Concept enduro bike. This is the one in which Rob built by hand in this shed
Rob's original high-pivot concept 160mm bike. A carbon frame built by hand in this shed.

The Taniwha frame in a 3D printed sample. Rob produced this so he hand something full size to work with and see how it would look before continuing on with tooling of carbon holds
The Taniwha frame in a 3D printed sample. This full-size model was produced to see how it would look before continuing on to sign-off the tooling and carbon molds.

The ass end of the beast The pi on gear boxes fit up in there
The Pinion gearbox bolts into the 'bottom bracket' area.
For a 3D printed sample the finish was of a very high standard
This finish of this 3D printed sample was to a very high standard.

In-depth details on that fork concept
A fork that is sprung via an air shock? When questioned, Rob said he had a working sample many years back and using the shock produced much less stiction than a modern-day fork.

This is what the Taniwha would look like with that concept fork on the front
One of many of the concept drawings on Rob s wall. A fork that is sprung via and air shock When questioned Rob said he had a working sample many years back and it was fantastic as the shock had much less stiction than a modern day fork

Concept drawings of a new Carbon Downhill bike
Concept drawings of a new carbon downhill bike?

Fresh G2 27.5 frames ready to head out to their new owners
Fresh G2 27.5" frames ready to head out to their new owners.

Spare rear ends and alfine hubs waiting to be built into new DH frames
Spare rear ends and alfine hubs waiting to be built into new DH frames

Rob s original working prototype for the what became the range of G1 and G2 downhill bikes today
Rob's original working prototype for the what became the range of G1 and G2 downhill bikes today.
Another old prototype hanging up high
Another old prototype hanging up high.

The original Zerode trail bike hiding in the back of the Bomb Shelter
The original Zerode trail bike hiding in the back of the 'Bomb Shelter'.
